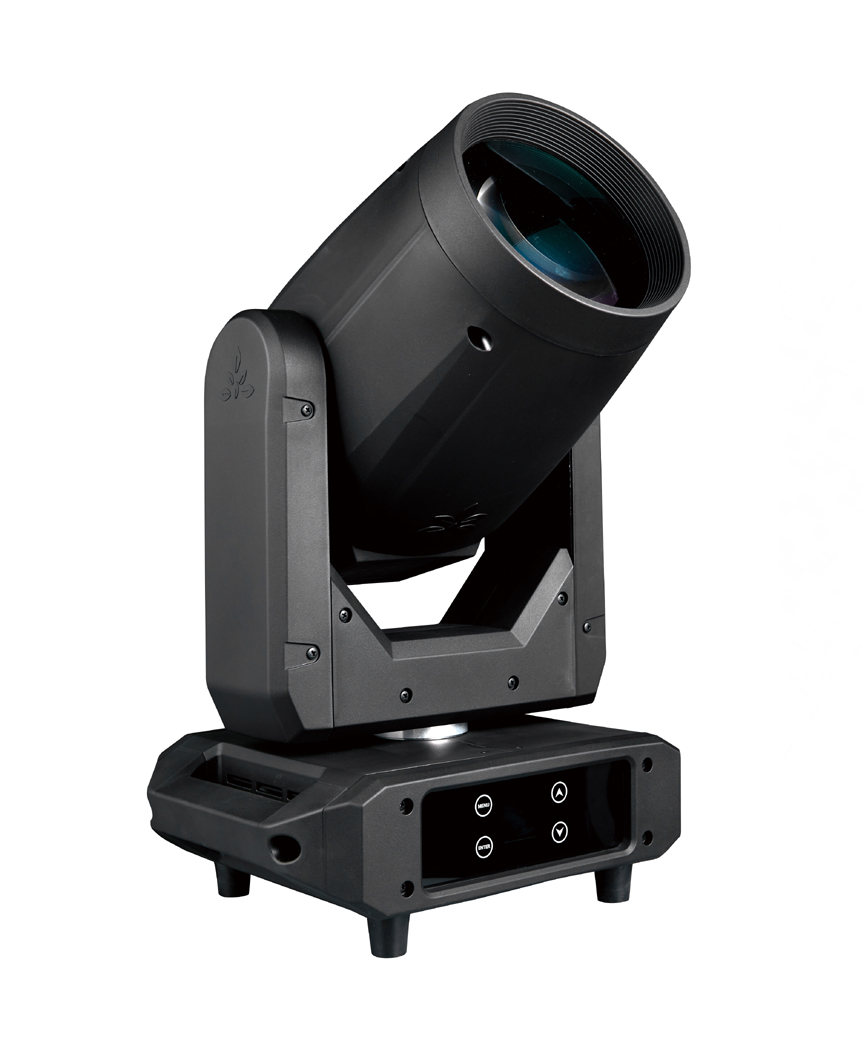

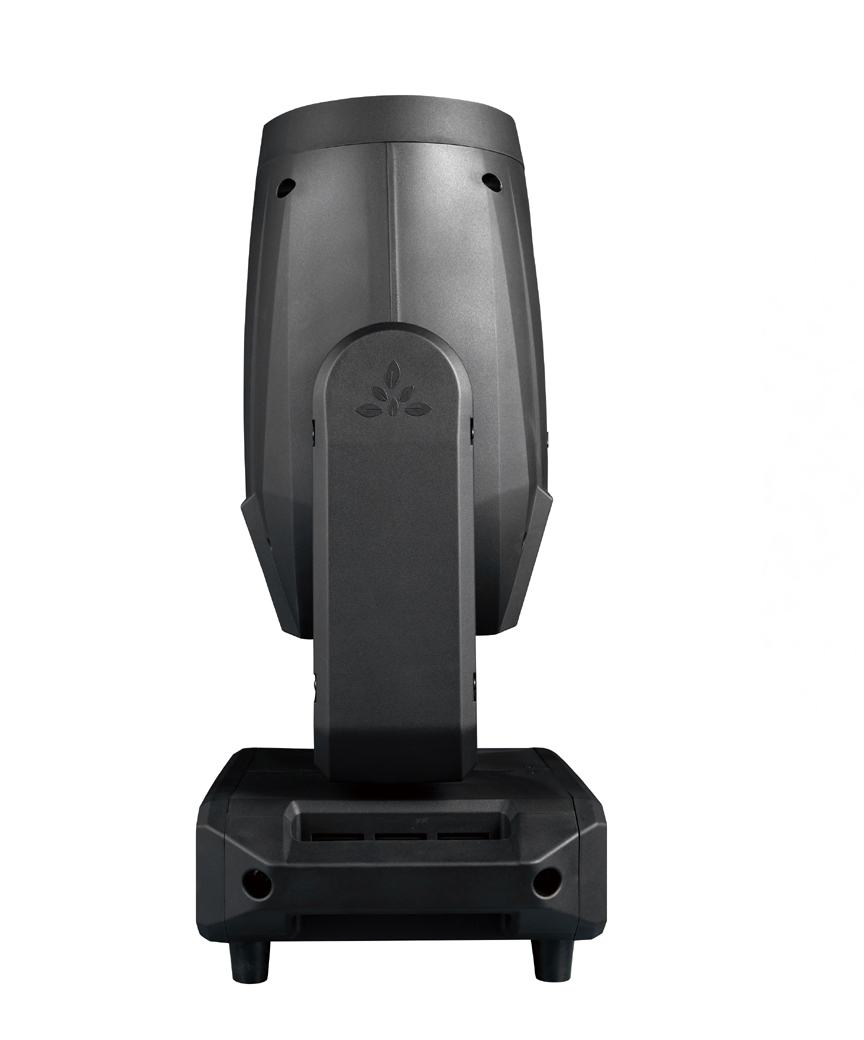

380W/390W/420W Moving Head Beam Light
Parameter
Size
Detail
Effect light
Projection
Video
Application
Power supply: AC 100-240V, 50/60 Hz;
Power: 600 w;
Light bulb:phoenix;
Ballast: electronic ballast;
Control mode: voice control, built-in program, master-slave computer, DMX512 signal control;
Number of DMX512 channels: 16/17 channels;
Color wheel: a color wheel, which consists of 13 color films+blanks;
Pattern disk: a pattern disk, which consists of 13 patterns+blanks;
Prism: 2 rotatable prisms: a 16 prism and a 24 prism; Prisms can overlap, three prism effects;
Atomization: an atomizing mirror or a colorful mirror is optional;
Optical angle: parallel beam angle 0 ~ 2.0, atomizing light angle 8;
Light exit aperture: 160mm,
Lens: multi-group high-precision lens combination, advanced optical design, maximum efficiency use of light source, brighter and fuller beam;
Dimming: 0-100% mechanical dimming;
Focus: linear focus;
Strobe: Dual-frequency flash structure, adjustable 0.5-14 times per second, supporting mechanical strobe and adjustable strobe effect, and supporting strobe macro function;
Horizontal scanning: 540 (16 bit precision scanning) electronic error correction;
Vertical scanning: 270 (16-bit precision scanning) electronic error correction;
Cooling system: built-in cooling mute fan forced air cooling, electronic temperature control overheating protection;
Fuselage material: high temperature resistant plastic+molded alloy material;
Connection mode: 3-core Calon DMX input and output, power input;
Working environment: indoor-20 ~ 40℃;
IP protection level: IP20.
Net weight: 19.5Kg
Size: 590.5*372.5*265mm
